E-Catalog > โคมฟลูออเรสเซนต์ฝังฝ้า > โคมตะแกรงถี่ฝังฝ้าทีบาร์และยิปซั่ม 1x36 วัตต์

PAGE VIEW : 5,672

Product Information :

Name :

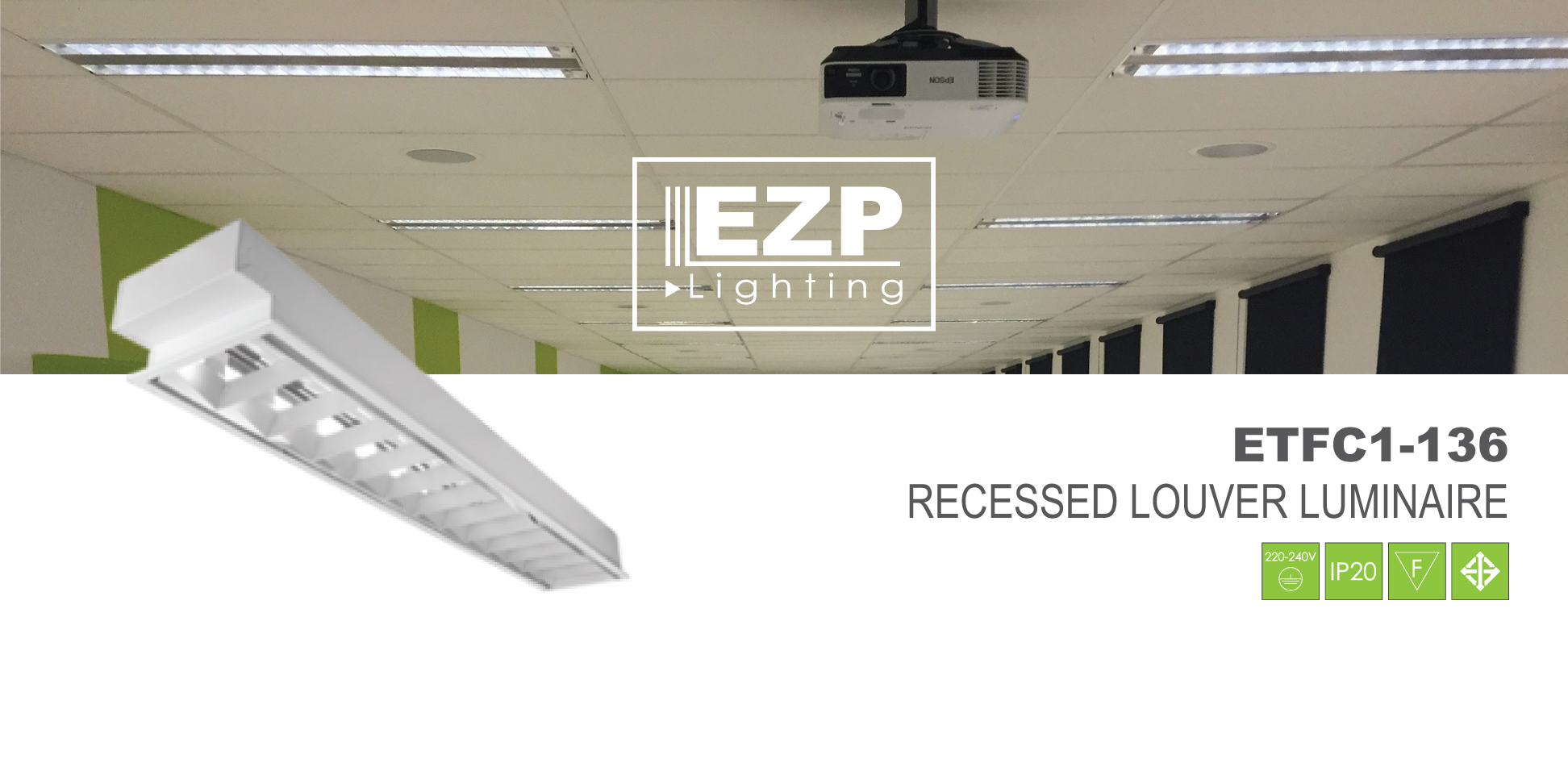

โคมตะแกรงถี่ฝังฝ้าทีบาร์และยิปซั่ม 1x36 วัตต์
Category :
  1. ไฟฟ้าและอิเล็กทรอนิกส์
Sub - Category :
  1. โคมฟลูออเรสเซนต์ฝังฝ้า
Brand :
EZP
Model :
ETFC1-136
Product Type :
  1. สินค้า, ผลิตภัณฑ์
Short Description :
โคมตะแกรงถี่แบบฝังฝ้า 1x36W ผลิตจากเหล็กคุณภาพสูง พ่นป้องกันสนิมเคลือบด้วยสีฝุ่น ทนทานแข็งแรง

Product Detail :

SPECIFICATION

  Housing   Formed high grade cold-rolled steel sheet of thickness 0.6 or 0.8 mm.
  Surface Treatment   Ion-Phosphate coated anti-rust with top finished with uv resistance white polyester powder coated.
  Reflector   Parabolic high purity anodized aluminium 99.85% mirror finished total reflection 87%. Optional 95% for high efficiency purpose.
  Louver   Parabolic high purity anodized aluminium 99.85% mirror finish for longitudinal & profile aluminium cross blade.
  Wires   THW, according to TIS 11-1988 Standard.
  Holder   Rotor locked type high-heat resistance, according to TIS 344-1987
  Installation   Recess T-bar ceiling, recess conceal ceiling (M-Bar).





MODEL POWER DIMENSION (mm)  CUT OUT (mm)
L  H L W
ETFC1-136A 1 x T8 36W 1195 200 110 1180 185
ETFC1-136B  1 x T8 36W 1195 295 100 1180 280
